Industrial shrink tunnels are critical thermal units designed to deliver controlled heat application for PVC, PETG, OPS, and PLA shrink film sleeves, as well as tamper-evident safety bands. While automated sleeve labeling machinery positions the film onto containers, the shrink tunnel governs the final aesthetic conformity, graphic alignment, and seal integrity.
In modern automated packaging lines, high-precision shrink heat control directly impacts key manufacturing performance indicators:
Engineered for versatile manufacturing integration, from stand-alone tamper-evident neck banders to full-body high-speed steam shrink lines.

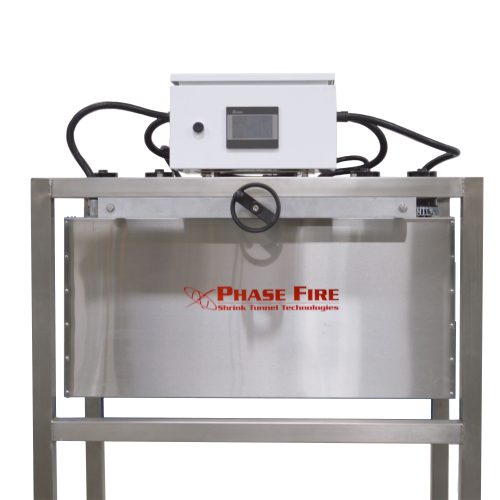

Features energy-efficient infrared quartz convection heating elements combined with a fully insulated multi-stage recirculating system. Delivers precise multi-zone temperature control for full-body shrink sleeve applications.

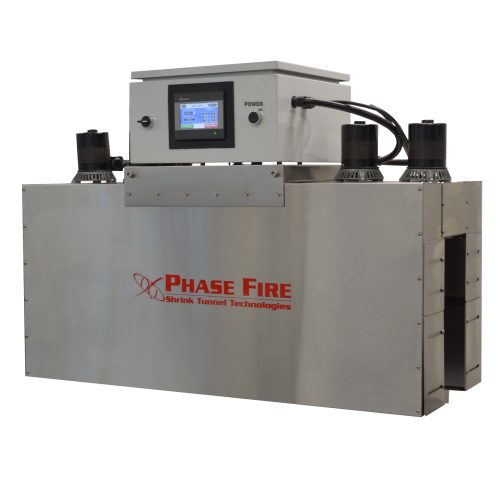

Engineered for clean, low-maintenance thermal shrink processing. Offers optimized energy conservation, uniform airflow circulation, and dependable performance on medium-to-high speed production lines.
Utilizes advanced infrared convection emitters with extended tunnel lengths. Designed for high-volume beverage and food packaging lines demanding rigorous shrink sleeve quality and graphic accuracy.

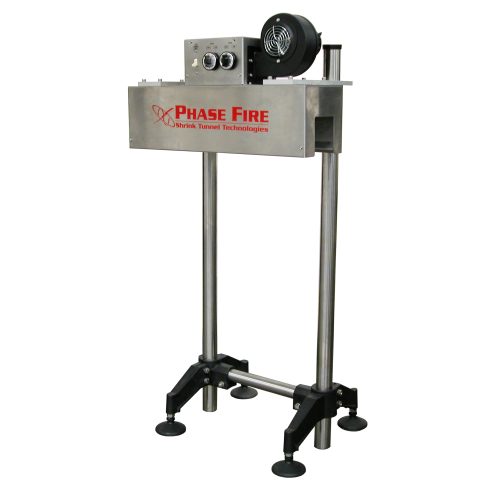

Specialized thermal system designed for neck-banding and tamper-evident cap sealing. Implements a tapered directional heating process to eliminate film distortion around bottle necks.

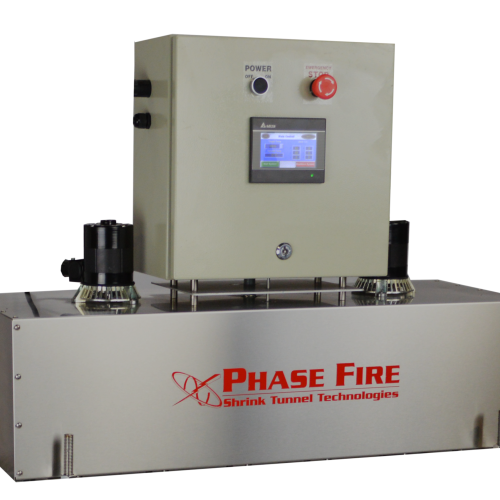

High-temperature thermal chamber engineered for pharmaceutical capsule sealing, heavy-gauge neck-bands, and specialized industrial containers requiring rapid, intense heat distribution.

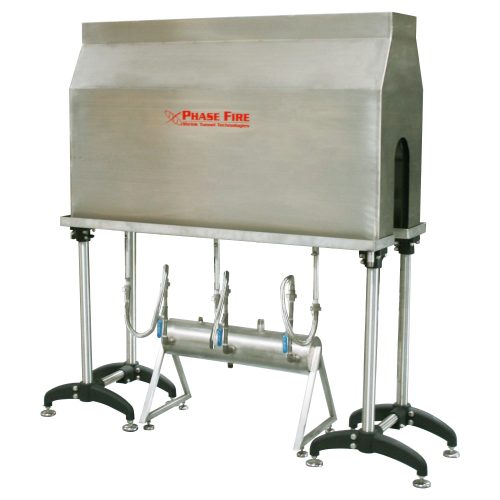

Full stainless-steel steam chamber constructed for complex container geometries and high-speed sleeve labeling lines. Delivers flawless 360-degree shrink uniformity with low maintenance.
Selecting the optimal heat medium depends on container geometry, production line velocity, film composition, and utility infrastructure.
| Shrink Tunnel Type | Heat Source | Optimal Application | Line Speed Capability | Key Performance Advantage |
|---|---|---|---|---|
| Steam Shrink Tunnels | Controlled Steam Jets | Full-body shrink sleeves, complex container contours | Moderate to Very High | 360° uniform heat distribution, zero graphic distortion |
| Electric Hot Air Tunnels | Infrared & Convection Heaters | Tamper-evident neck bands, standard bottles | Moderate | Low utility cost, precise temperature zoning, compact design |
| High-Velocity Air Tunnels | Forced Air Blower Manifolds | High-speed beverage & aerosol packaging lines | High to Extreme | Rapid thermal transfer, high throughput efficiency |
Steam tunnels provide ideal thermal conductivity for intricate bottle profiles and heat-sensitive liquids. By utilizing regulated low-pressure steam, heat is evenly distributed across every millimeter of the container surface simultaneously.

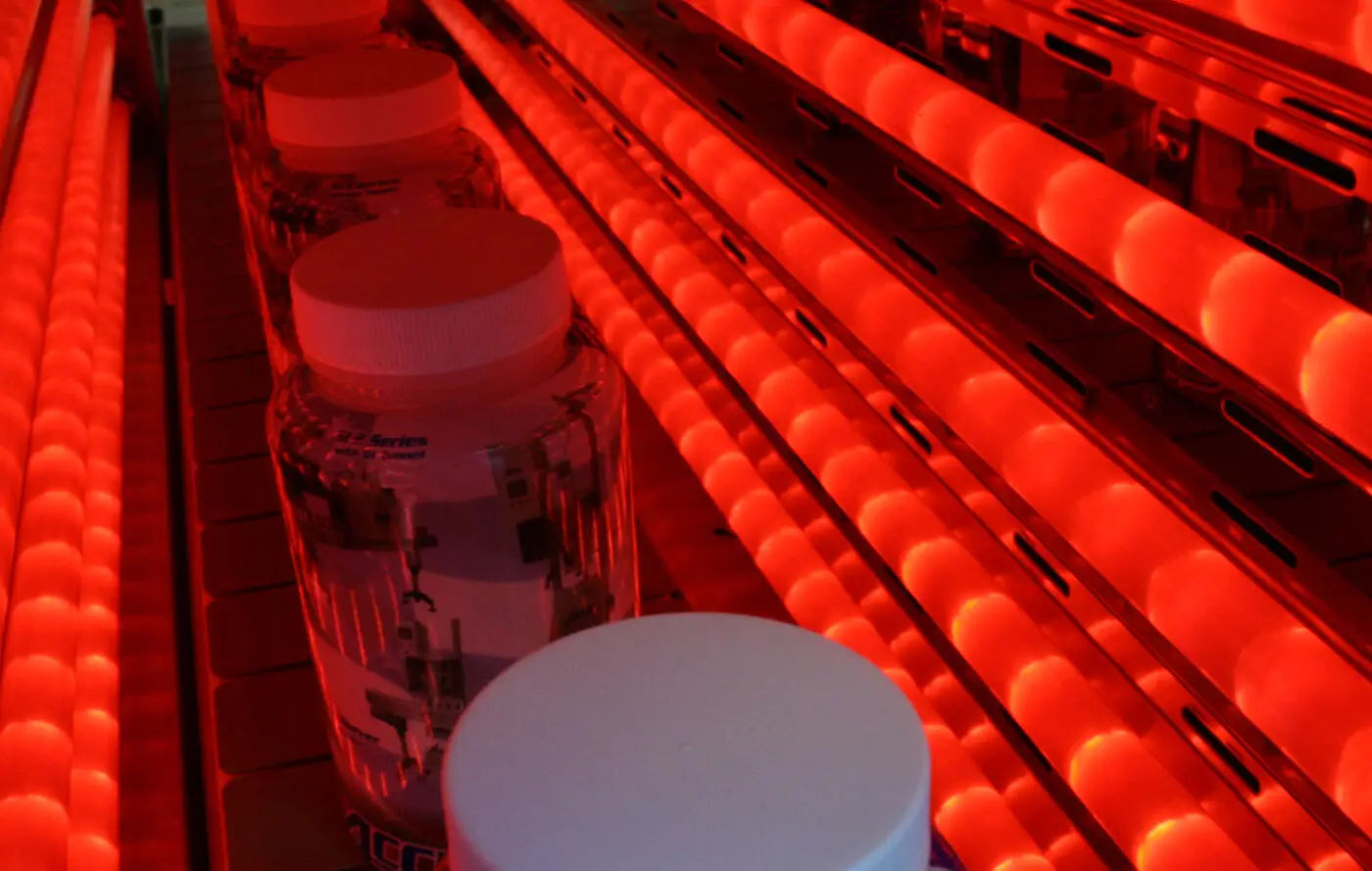

Electric heat tunnels utilize radiant infrared elements paired with internal air recirculation blowers. Air pattern nozzles are adjustable to target specific regions of the bottle, such as cap seals or shoulders.
Since 1988, Accutek Packaging Equipment Company has designed, built, and supported industrial packaging machinery from our state-of-the-art facilities in California, Texas, and Florida. Our turnkey systems comply with global sanitary and safety standards, serving leading multinational manufacturers across North America, Europe, Asia, and Latin America.
Every Accutek shrink tunnel is fabricated using heavy-duty 304 or 316 stainless steel frames, premium electrical components, and industrial-grade thermal insulation to guarantee maximum operational uptime and compliance with international cGMP and CE requirements.
Expert answers regarding thermal processing equipment, film compatibility, and line integration.
An industrial shrink tunnel is a thermal processing chamber that applies controlled heat via hot air or steam to shrink plastic sleeves or tamper-evident safety bands tightly onto bottles, jars, cans, and containers.
Yes. After sleeve applicators cut and place plastic film onto containers, heat activation within a shrink tunnel is required to shrink the film precisely to the container profile.
Steam tunnels provide superior 360-degree uniform shrinkage for asymmetrical or highly contoured glass/PET bottles without graphic distortion. Hot air tunnels offer lower installation costs, simple electrical requirements, and excellent performance for tamper bands and symmetrical containers.
Yes. Accutek shrink tunnels feature adjustable conveyor guide rails, height-adjustable heating manifolds, and digital speed controls to accommodate multiple bottle diameters and heights on the same line.
Connect with Accutek thermal system specialists to review your container dimensions, sleeve film specs, and production speed requirements. We deliver tailor-made packaging machinery solutions for global manufacturers.
