Automated Bottle & Container Capping Machinery Solutions
Accutek Packaging Equipment manufactures industrial-grade capping machines designed to handle diverse container geometries, cap types, and production requirements. From standalone semi-automatic benchtop cap tighteners to fully integrated high-speed multi-head rotary capping systems, our equipment delivers exact torque application, tight hermetic seals, and tamper-evident packaging security.
In modern automated packaging lines, closure integrity is a vital control point for product safety, leakage prevention, and regulatory compliance. Accutek capping systems seamlessly integrate with filling, labeling, and material handling conveyors to maximize operational uptime.
- Consistent Torque Control & Reduced Thread Stripping
- Heavy-Duty Sanitary Stainless Steel Construction (cGMP Support)
- Quick-Changeover Tooling for Versatile Bottle & Closure Formats
- High-Speed Synchronized In-Line & Rotary Operations
- Export-Ready Systems Supporting International Voltages (220V/380V/440V)
Comprehensive Capping Machinery Technologies
Select from industry-proven capping mechanisms tailored to your specific container material, closure geometry, and line speed requirements.
Screw Spindle Cappers
Utilizes counter-rotating spindle discs to continuously tighten threaded caps onto bottles as they move along the conveyor. Ideal for continuous, high-speed inline liquid packaging applications.
Screw Chuck Cappers
Delivers repeatable pneumatic or servo-driven torque control via a gripping matrix. Recommended for pharmaceutical, nutraceutical, and cosmetic containers requiring stringent seal validation.
ROPP Roll-On Cappers
Designed for aluminum closures on glass or rigid containers. Uses rolling knives to thread and form pilfer-proof tamper-evident bands around bottle necks for spirits, wines, and pharmaceuticals.
Push-On & Snap Cappers
Applies controlled downward force to press snap caps, overcaps, and dropper tips onto containers without damaging threads. Widely utilized in food, beverage, and personal care packaging.
Accutek Capping Machines Product Range
Discover our broad selection of industrial cappers, engineered for high reliability, low maintenance, and global distribution.

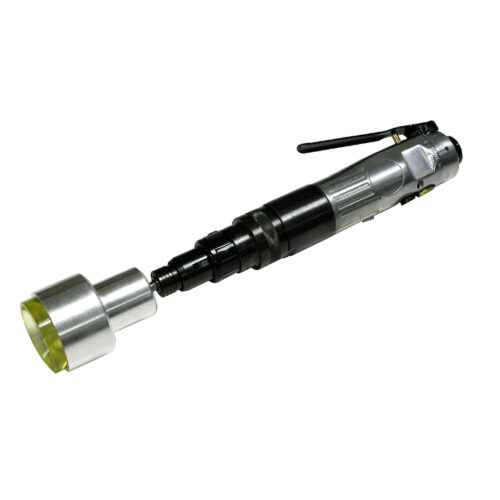

AccuCapper HDEX
Heavy-duty pneumatic handheld cap tightener capable of torqueing or removing screw and lug type closures up to 90mm in diameter. Ideal for batch production and rework stations.

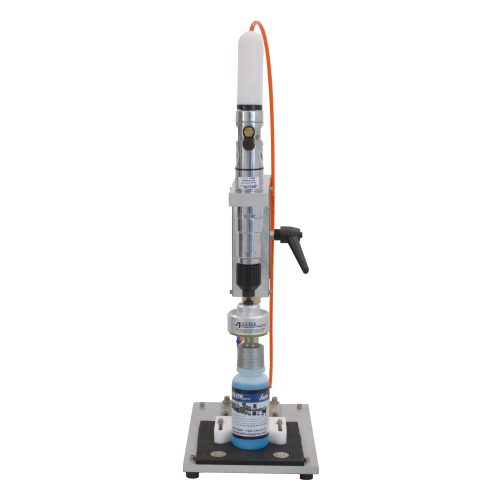

AccuCapper BT
Semi-automatic benchtop pneumatic chuck capping machine providing precise torque accuracy for small to mid-sized production runs and laboratory environments.

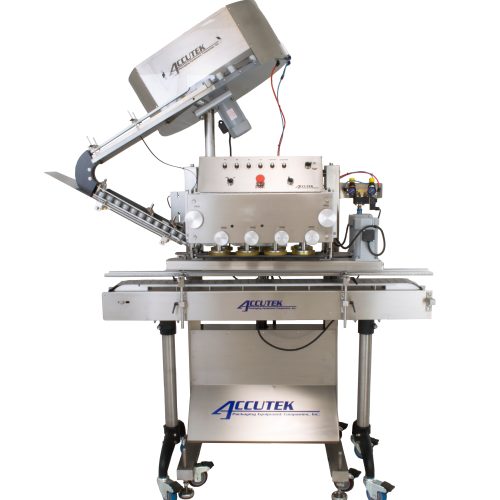

ASC Series Automatic Spindle Capper
Sanitary stainless steel automatic spindle capper with cap feeder elevator. Delivers continuous motion capping for a broad spectrum of bottle styles and cap sizes.

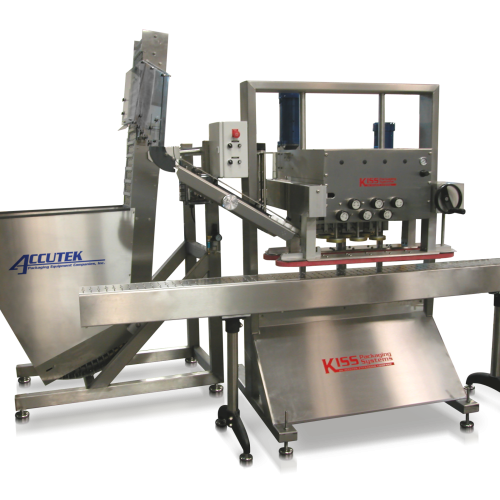

ACT-8 Automatic Screw Capper
Features an 8-spindle design engineered for continuous high-speed production up to 300 containers per minute. Perfect for high-volume beverage and chemical lines.
ROPP Roll-On Capper
Roll-Over Pilfer-Proof capper customized to form threads and create tamper-evident security rings on aluminum caps for wine, spirits, and pharmaceutical bottles.

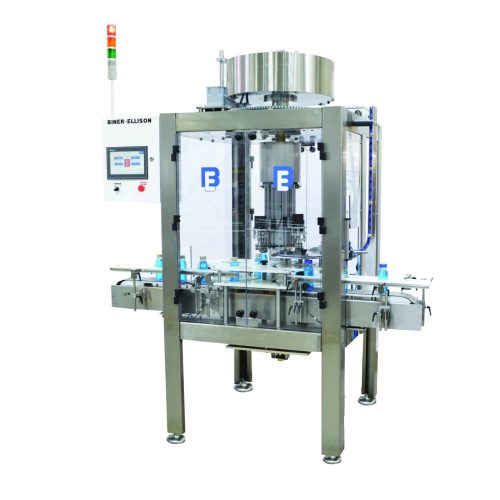

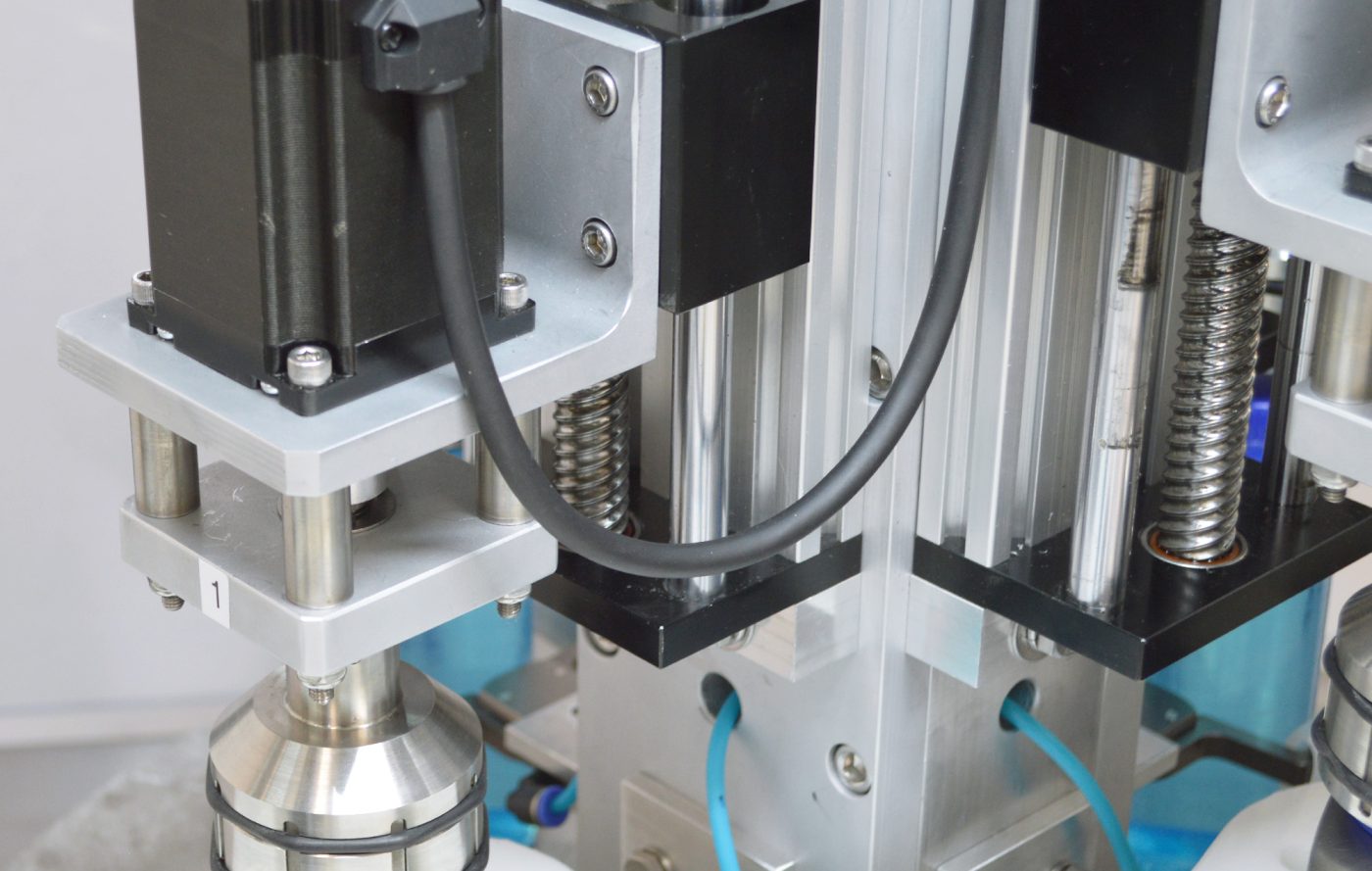

Servo Rotary Chuck Capper
State-of-the-art multi-head rotary capper with individual servo torque motors. Offers real-time torque monitoring, electronic height adjustment, and unmatched speed.

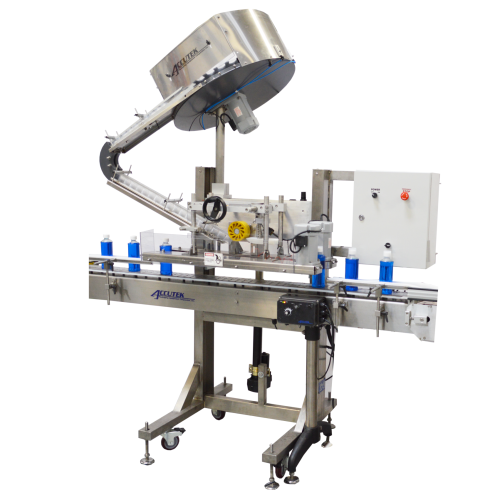

Automatic AccuSnap Capper
Continuous motion press-on capper that replaces manual snap cap placement. Prevents spills and operator fatigue while ensuring 100% cap seating.

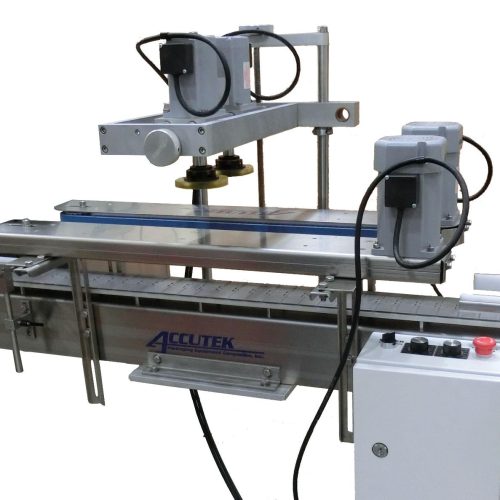

ASC-2 Retorquer Capper
Re-tightens cap closures downstream of induction sealers to restore proper torque tension after heat sealing. Essential for pharmaceutical and chemical packaging compliance.

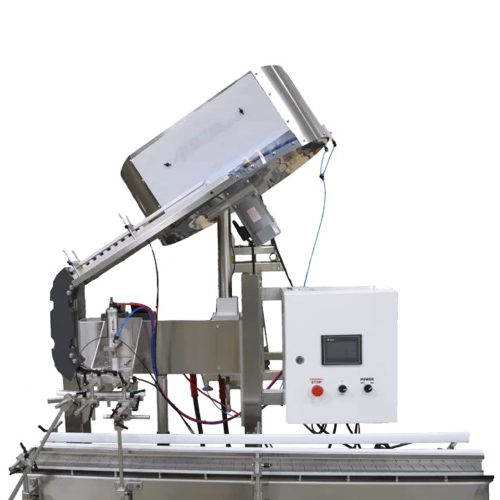

T-Corker Stomp Capper
Specialized bottle corking machine equipped with a centrifugal sorting bowl and pneumatic insertion mechanism for spirits, oils, and specialty glass bottles.
Capping Machinery Selection & Specification Guide
Compare capping mechanisms, motion profiles, torque precision levels, and ideal production environments to specify the right system for your facility.
| Capper Type | Motion Style | Torque Mechanism | Max Speed Range | Primary Industry Applications |
|---|---|---|---|---|
| Spindle Cappers (ASC / ACT) | Continuous Inline | Adjustable Spring Friction Discs | Up to 300 BPM | Beverage, Household Cleaners, Edible Oils, Automotive |
| Chuck Cappers (BT / SACC) | Intermittent / Rotary | Pneumatic Clutch / Servo Control | 20 - 120 BPM | Pharmaceuticals, Nutraceuticals, Cosmetics, Specialty Chemicals |
| ROPP Cappers | Intermittent / Rotary | Multi-Wheel Threading Head | 40 - 200 BPM | Wines, Distilled Spirits, Syrup Bottles, Pharma Vials |
| Snap Cappers (AccuSnap) | Continuous Inline | Calibrated Pressure Belts | Up to 150 BPM | Dairy, Sauces, Personal Care, Tub & Container Overcaps |
| Rotary Servo Cappers | Continuous Rotary | Dedicated Servo Drive per Head | Up to 500 BPM | High-Volume Commercial Bottling Lines |
| Post-Sealing Retorquers | Continuous Inline | Dual Spindle Disc Set | Up to 250 BPM | Regulated Chemical & OTC Pharmaceutical Production |
World-Class Engineering & Global Procurement Support
Accutek provides international procurement teams and factory engineers with comprehensive technical support, robust machinery construction, and turnkey line integration.
Turnkey Line Integration & Synchronization
A capping machine must perform in perfect harmony with upstream liquid fillers and downstream pressure-sensitive labelers or shrink sleeving tunnels. Accutek cappers feature variable speed drives, sensor-guided bottle indexing, and integrated cap elevators to ensure smooth container transfer without bottle tipping or jamming.
Our automation controls support line interlocks, automatic low-cap alarms, and vision rejection systems to automatically isolate improperly capped containers.
Custom Tooling for Complex Container Geometries
Whether you package liquids in standard PET bottles, heavy-wall HDPE drums, or delicate custom cosmetic glass jars, Accutek engineers design custom bottle gripping belts, starwheels, and non-marring chuck inserts (such as polyurethane, rubber, or silicone matrices).
Our custom tooling prevents cap scuffing, preserves decorative closures, and guarantees exact torque application regardless of bottle shape.
Frequently Asked Questions
Common technical inquiries from global procurement managers regarding capping machine selection and installation.
What is an industrial capping machine and how does it work?
An industrial capping machine automates the application and torqueing of caps, lids, or closures onto containers. The equipment automatically feeds, places, and tightens closures using spindle wheels, chuck jaws, or pressing belts to deliver secure, leak-proof, and tamper-evident packaging.
How do I select between a spindle capper and a chuck capper?
Spindle cappers are best suited for high-speed continuous packaging lines using standard screw caps. Chuck cappers provide discrete, highly repeatable torque control for critical applications in pharmaceuticals, cosmetics, or hazardous chemicals where torque verification is mandatory.
How do I establish the correct torque setting for my closures?
Application torque depends on closure diameter, liner material, thread pitch, and container resin type. Accutek equipment allows precise torque calibration via pneumatic clutches or digital servo controls to meet ASTM seal integrity guidelines without stripping threads.
Are Accutek capping machines adaptable for overseas power grids?
Yes. All Accutek machinery can be custom-built to match international power requirements, including 220V 1-phase, 380V 3-phase, or 440V 3-phase systems operating at 50Hz or 60Hz. Heavy-duty export crating and documentation are standard for all international shipments.
